Shin Nan ductile iron pipes and fittings for potable water systems are manufactured according to EN545 / BS4772 / ISO2531 and under the quality system of ISO9001 for quality assurance. The standard nominal sizes DN of pipes and fittings are from 80mm to 2000mm. Every pipe and fitting are strictly subjected to hydrostatic pressure tests of the relevant standards, and easy for installation which can reduce the laying cost. The various inside lining and outside costing provide durable serving life.

Standards - Fully compliant with:

ISO 2531 : 1998 Ductile Iron Pipes, Fittings and Accessories for water or gas applications
EN 545 : 1995 Ductile Iron Pipes, Fittings, Accessories and their Joints for Water Pipelines
BS 4772 : 1988 Ductile Iron Pipes and Fittings

Pipes - Safety and Environmental friendly:

1) Socket and Spigot pipes with flexible joints shall be class K9, class K8, K10 & K12 are also available.
2) Standard pipes with flanges screwed or cast-on shall be class K12.
3) Standard pipes with flanges welded-on shall be class K9.

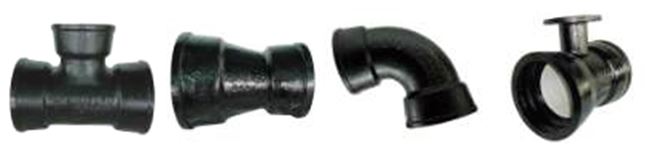

Fittings - Full and comprehensive range of fittings are available from DN80~DN2000 for connecting an integral pipe-line system.

---

Potable water pipeline coatings&linings

Coatings & Linings--Outside coating for corrosive protection and inside linings comply with BS6920 suitable for use in drinking water.

	Pipe	First
Outside External	》Unless otherwise specified by purchaser, all pipes are coated externally with zinc coating covered by a finishing layer of Bituminous paint in accordance with ISO8179, EN545, BS4772. 》Bituminous paint complies with BS3416:1991 type II. 》PE sleeves comply with ISO8180 are available.	》Unless otherwise specified by the purchaser, all fittings are coated externally with zinc coating covered by a finishing layer of bituminous paint in accordance with ISO8179,EN545,BS4772. 》Bituminous paint complies with BS3416:1991 type II. 》Fusion Bonded Epoxy is available.
Inside	》Unless otherwise specified by the purchaser, all pipes are cement lined to ISO4179, BS4027: Part2: 1980. 》Bitumen paint complies with BS3416:1991 type II. 》Seal coating is available upon request.	》All fittings are cement lined to ISO4179, BS4027: Part 2: 1980. 》Bitumen paint complies with BS3416:1991 type II. 》Fusion Bonded Epoxy, 250µm in thickness.

Cement Mortar Lining EN545 / BS4772 / ISO4179

Nominal size DN	Thickness			Maximum crack width and maximum radial displacement
	Nominal value	Minimum arithmetic mean value	Individual minimum value
80~300 350~600 700~1200 1400~1600 1800~2000 2200~2600	5 5 6 9 9 12	5 5 6 9 9 12	5 5 6 9 9 12	5 5 6 9 9 12
單位：mm

*Purchaser can consult with us about the best choice of external costings and internal linings to be used.

Potable water pipeline strength of pipe material

Strength of Pipe Material--Excellent quality for water main

Mechanical Properties
Properties	Pipes	Fittings
Tensile	420 N/mm2(Mpa) min	420 N/mm2(Mpa) min
Elongation	DN <= 1000 10% Min DN >= 1100 7% Min	5% min
Hardness	HB 230 max	HB 250 max

Pressure and Temperature Ratings

a) Works Proof and Leak Tighness Pressures

DN	Pipes	Fittings
(Nominal Size) mm	bar	bar
80 ~ 300 350 ~ 600 700 ~ 1200 1400 ~ 2000 2200 ~ 2600	50 40 32 25 18	25 16 10 10 10

b) The nominal pressure rating are applicable to the temperature range - 10℃ to 120℃;the purchasers should be consulted with us where pressure-temperature conditions are out of this range.

Potable water pipeline types of joints

Types of Joint - leak tightness and easy to install.

Flexible Joints
a) "Push in" "T" type (Tyton Joint) are available for pipes & fittings of the range DN80 ~DN2000
b) "Mechanical""K" type(Bolted-Gland Joint) are available for pipes & fittings of the range DN80 ~ DN 2000.
Note: Standard rubber gaskets for flexible joints comply with BS 2494:1990 "W" type(water). ISO 4633 "WA" type.

Flange Joints
a) Dimensional details of flanges designated PN10, PN16, PN25 and PN40 are produced in accordance with BS4772 / ISO2531 / EN545 are dimensionally compatible with the corrensponding flanges BS4504.
b) PN16 flanges are supplied as standard for pipes and fittings of the range DN80 ~ DN2000.
PN10, PN25 and PN40 flanges are also available upon request.

Angular Deflection & Straight Draw of "Push-in" type flexible Joint (Tyton Joint)

DN (Nominal Size) mm	Allowable Angular Deflection	Allowable Straight Draw Without Deflection
80 ~ 300 350 ~ 600 700 ~ 800 900 ~ 1200 1400 ~ 1600 1800 ~ 2000	5 4 4 4 4 1.5	38mm 38mm 56mm 70mm 95mm 105mm
